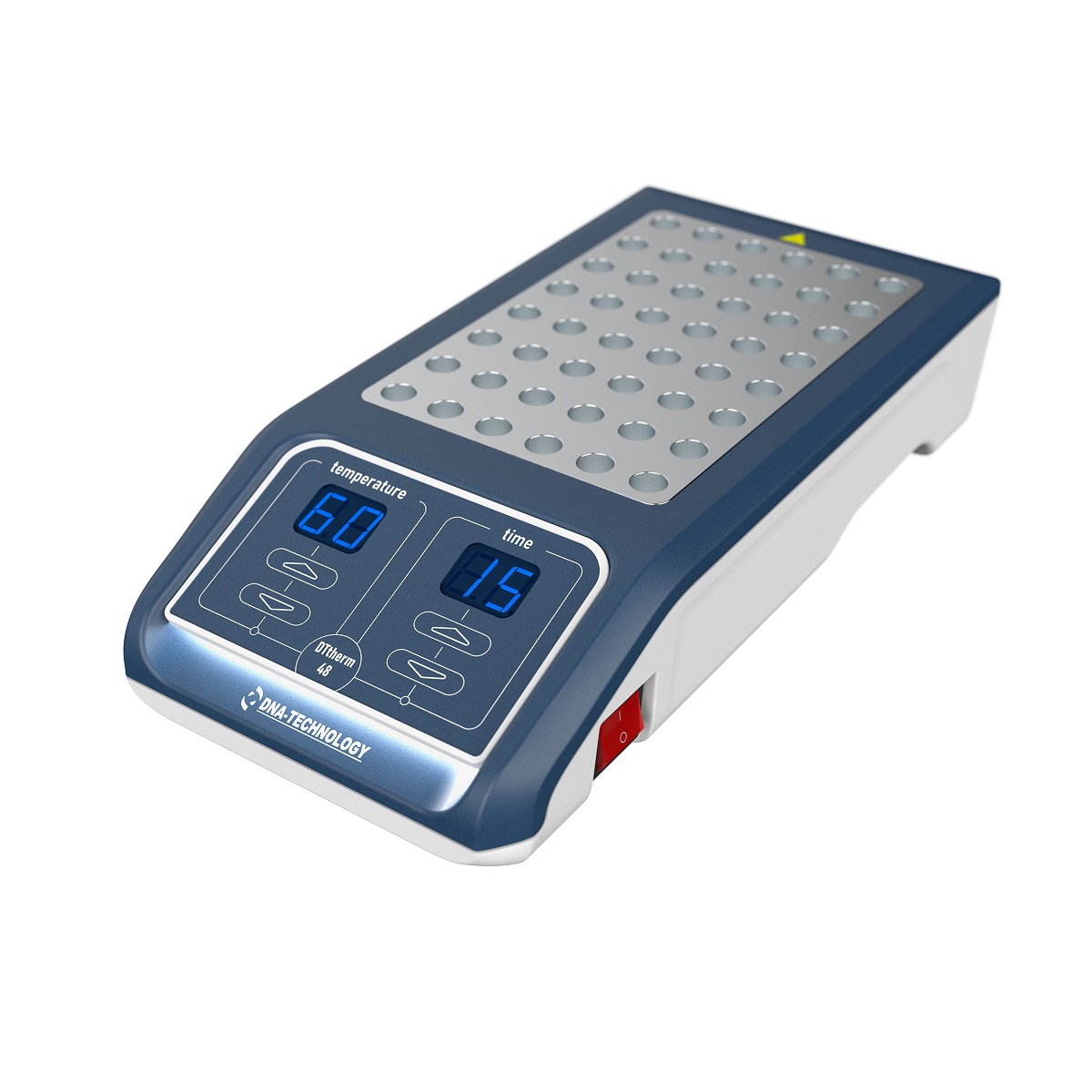

DTtherm 48 Dry Bath
The actual product may vary from the images shown on the website.
Modern and functional RUO dry bath provides uniform heating, liquid thermostatting, sample incubation, and more. The thermostat is used in clinical diagnostic and research laboratories for a variety of tasks, including:
• thawing samples,
• DNA extraction,
• enzymatic reactions,
• heating or melting of media,
• drying or dissolving precipitates, etc.
Increased capacity
The thermostat is designed to hold 48 tubes. This capacity is especially convenient for PCR methods where the sample count is a multiple of 8. Compatible consumables include 1.5 ml conical Eppendorf tubes.
High Temperature Uniformity
An updated microprocessor and reliable ceramic heating elements maintain a uniform temperature across the thermoblock with high precision.

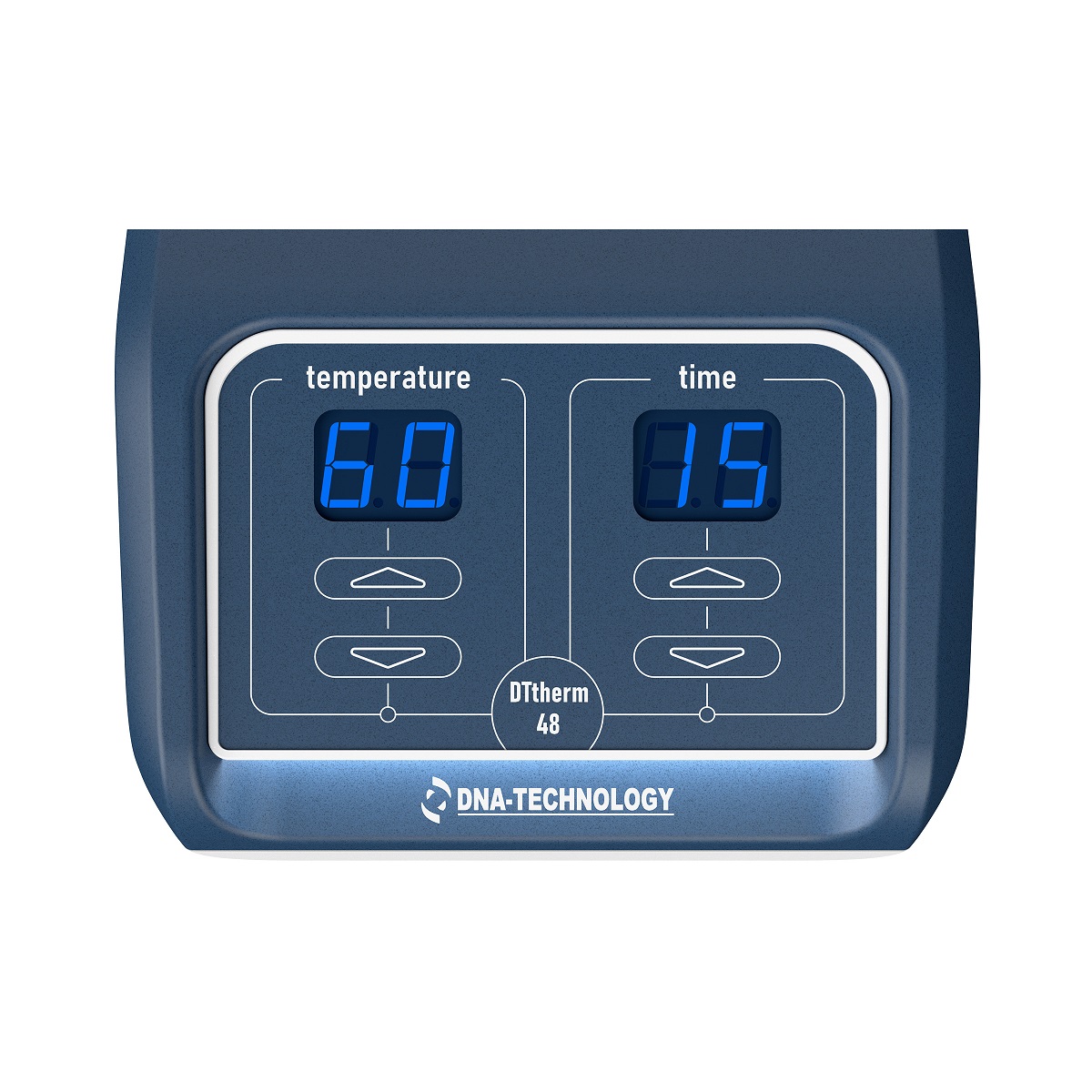

Convenient Operation
The control panel is located on the front of the device and is divided into two sections, allowing independent temperature and time control. Bright blue indicators clearly display the current temperature and time from any angle and through the protective glass of the cabinet. Heating of the thermoblock begins only after the desired temperature has been selected.
Built-in Timer
Thermostat duration can be set from 1 to 99 minutes. An audible signal sounds when the set time has elapsed. The last timer value is saved in the device's memory and displayed the next time the device is turned on. If necessary, the time can be changed while the timer is running.
Compact Design
The compact size of the device allows it to be placed anywhere in the laboratory or in a cabinet alongside other equipment. The outer surfaces of the device are resistant to repeated disinfection.
| Technical parameters | |
| Mains voltage, V | 230 ± 10 % |
|
Power consumption from 230 V mains voltage: Initial heating, W Set temperature maintenance, W |
Up to 290±5% At least 150±5% |
| Dimension (DхWхH), mm | 292 х 146 х 71 |
| Weight, kg | 2,5 ± 5% |
| Body material | ABS plastic |
| Heat block mateial | Aluminum alloy |
| Tubes in the heat block, pcs | 48 |
| Tube type | Conical 1.5 ml Eppendorf |
| Heating element | Ceramic |
| Working temperature range, °С | From ambient to 99 |
| Time increment, min | 1 |
| Temperature maintenance precision, °C | ±1 |
| Temperature setting discreteness, °C | 1.0 |
| Temperature uniformity in the heat block across the sockets, °С | ±0,5 Up to ±0.5 in the established mode |
| Maximum heat block heating speed, ºС/min | 8 |
| Sound signal | Yes |
| Timer on board, min | 1 – 99 |
| Class of protection | IP31 |
| Warranty, months | 24 |
